Detalhes do produto:
Condições de Pagamento e Envio:
|
| Operating Wavelength(nm):: | 1260~1650 | Package Type: | steel tube type /ABS box |
|---|---|---|---|
| Fiber Module: | G657A1 or customized | Fiber Connector: | SC/LC/FC/ST |
| Return Loss: | 60dB | Input/Output Fi: | 0.9mm, 2.0mm, 3.0mm |
| Destacar: | G657A1 Fiber Optic Cable Splitter,2.0mm Fiber Optic Cable Splitter,3.0mm Fiber Optic Cable Splitter |
||

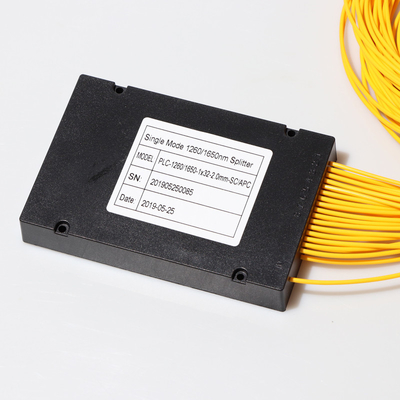

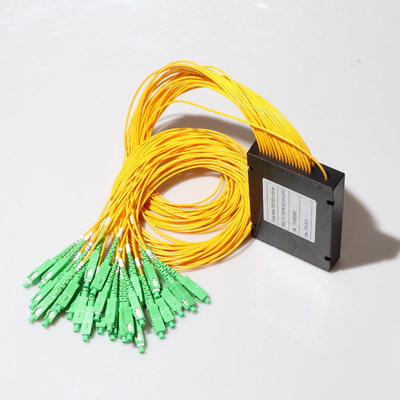

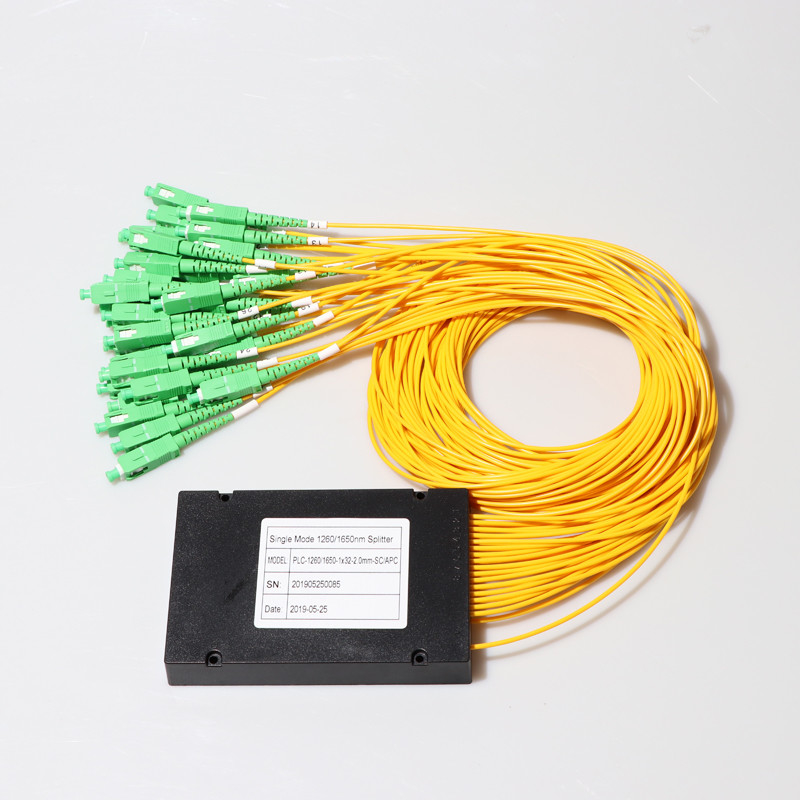

2.0mm 3.0mm ABS Box G657A1 Fiber Optic Cable Splitter
SOFTEL FTTB/FTTH SC/APC connector ABS box 1*8 1*16 1*32 2*8 Fiber Optic PLC Splitter with SC connector for FTTH
Description:
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
|
Parameter/Type
|
Nx2(N=1or2)
|
Nx4(N=1or2)
|
Nx8(N=1or2)
|
Nx16(N=1or2)
|
Nx32(N=1or2)
|
Nx64(N=1or2)
|
|
Fiber
|
9/125 um SMF-28e or customer appoint
|
|||||
|
Operating Wavelength(nm)
|
1260~1650(nm)
|
|||||
|
Insertion Loss
|
≤3.9dB
|
≤7.1dB
|
≤10.3dB
|
≤13.3dB
|
≤16.3dB
|
≤19.8dB
|
|
Loss Uniformity(dB)
|
≤0.6dB
|
≤0.6dB
|
≤0.8dB
|
≤1.2dB
|
≤1.5dB
|
≤2.0dB
|
|
Polariation Dependent Loss
|
≤0.15dB
|
≤0.15dB
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
≤0.3dB
|
|
Return Loss
|
UPC≥50dB APC≥60dB
|
|||||
|
Directivity
|
≥55dB
|
|||||
|
Working Temperature(℃)
|
-40°C to +85°C
|
|||||
