Detalhes do produto:
Condições de Pagamento e Envio:
|
| Product name: | Optical Distribution Frame /ODF | Type: | odf, cross cabinet |
|---|---|---|---|
| color: | Gray | Certificação: | SO9001,ROHS,TLC,ISO |
| Application: | FTTH FTTB FTTX Network | Capacity: | 96/144/288/576 |
| Destacar: | Telecom ODF Optical Distribution Frame,144 Port Telecom ODF,FTTB ODF |
||

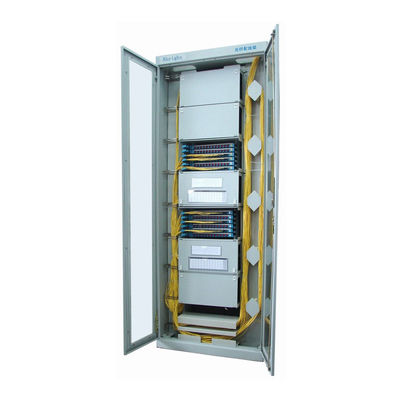

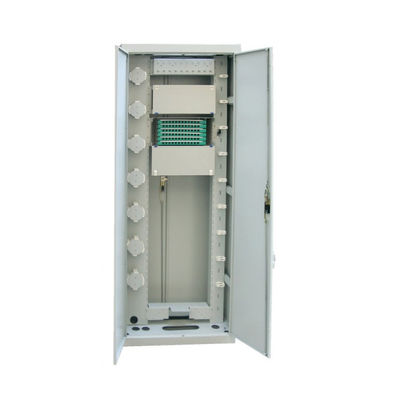

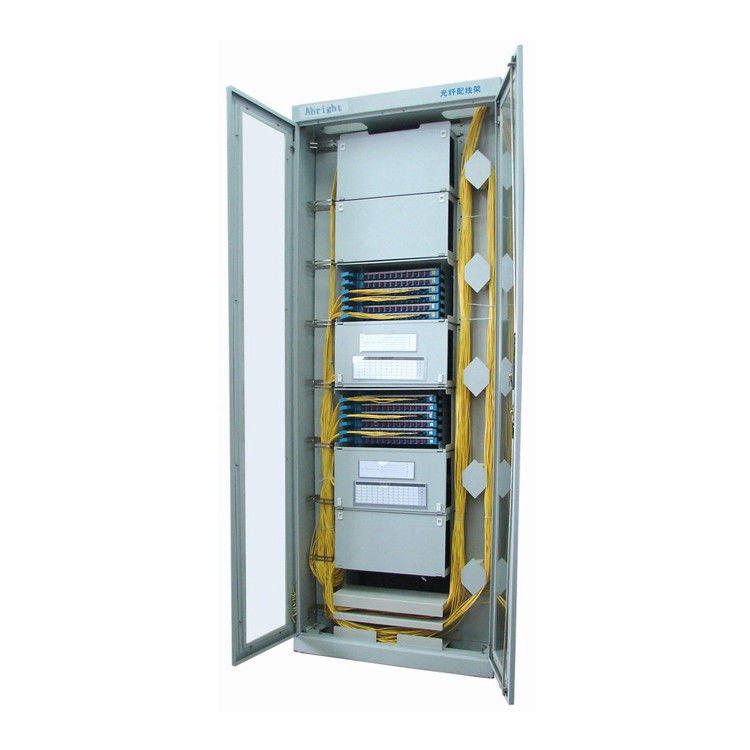

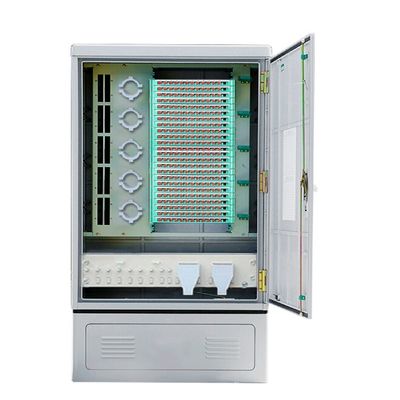

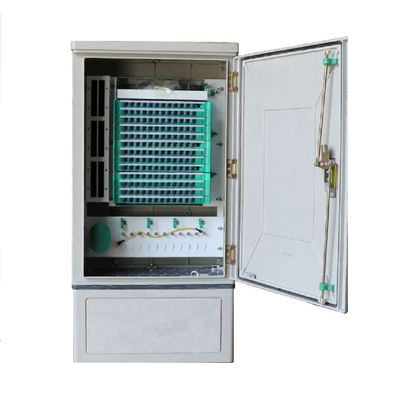

FTTB 144 Port Telecom ODF Optical Distribution Frame
FTTH 96 144 288 576 port cabinet outdoor for telecom optical distribution frame odf fiber odf with good price
ODF is designed for either ti support direct termination or fusion splicing of the fibers.The materials used for the patch panel is of high quality metal with natural finishes making it light weight but robust.
Features designed to simplify installation and maintenance includes telescopic pull out tray with easy push-pull lock nut,double calbe entries from the back allowing more than 2calbes termination in the patch pannel.
ODF can be loaded with a variety of adaptors like ST,SC,FC,LC and MTRJ, duplex adaptor are also available for those applicable type.All this must be defined during order,accroding to the specific part number.The fully loaded patch panel support termination up to 96 fibers.
Technical Parameters
| Material | Steel and ABS plastic |
| Finished product | black appearance |
| Working temperature | -40℃ ~ + 60℃ |
| Design standard | TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1 |
| Curvature radius | ≥40mm |
| Lateral pressure-resistance | 500N |
| Resistance | 750N |
