Detalhes do produto:
Condições de Pagamento e Envio:
|
| Type: | Racks & Enclosure, Up-down | Dimension: | L:280mm, W:200mm, H:90m |
|---|---|---|---|
| Color: | Black | Suitable Dia of cable:: | 8-20mm |
| Water proof grade: | IP67 | Material: | ABS+PC |
| Max capacity: | Max 96 fibers | Core capacity per tray:: | 12 cores and 24 cores |
| Destacar: | FTTH Fiber Optic Enclosure,ABS FTTH Optic Enclosure,FTTH Dome Enclosure |
||

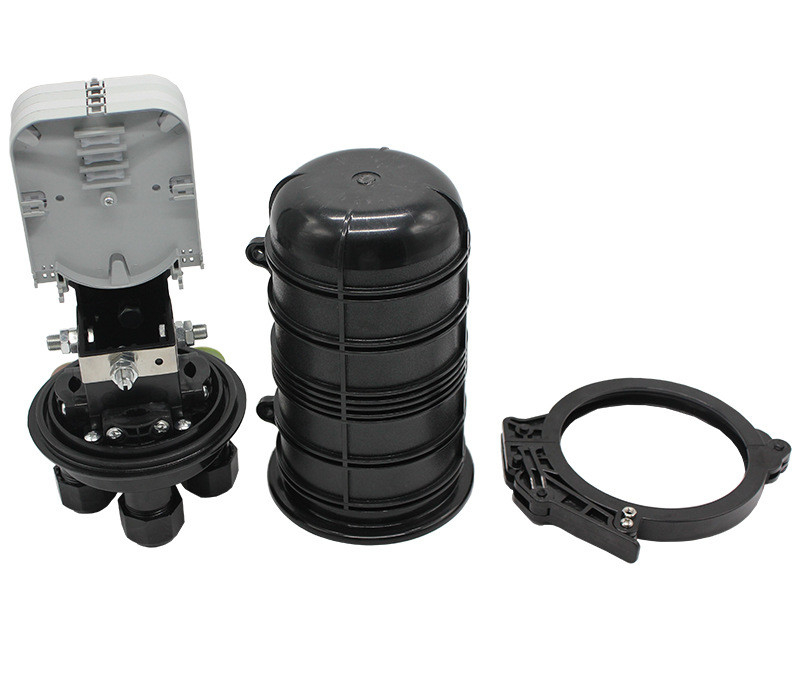

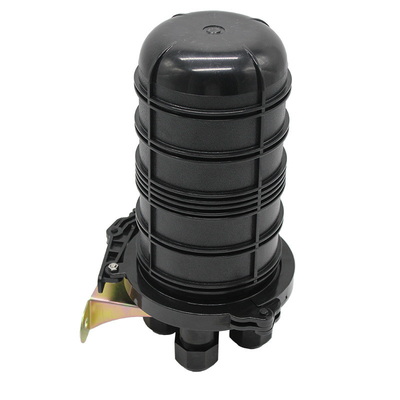

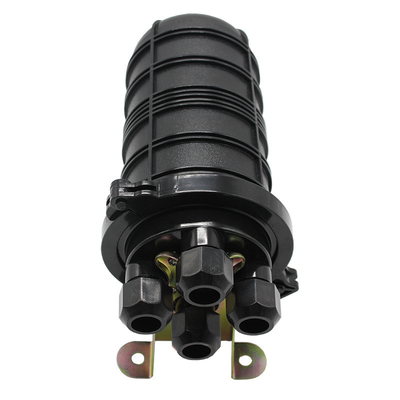

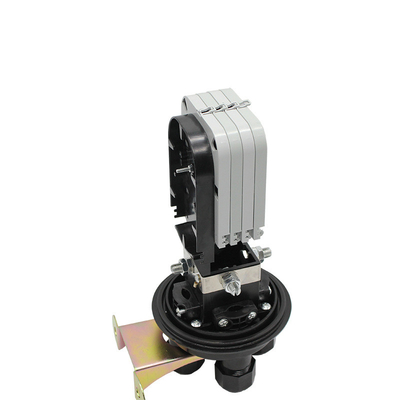

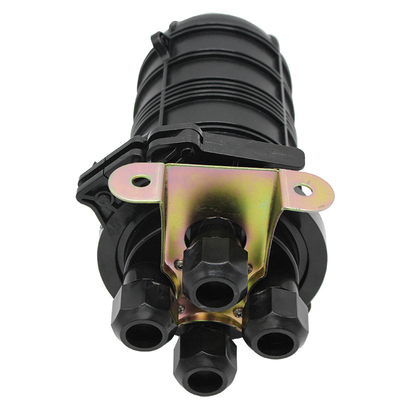

Telecom Equipment Dome ABS FTTH Fiber Optic Enclosure
Fiber Optic Enclosure 24F 48C 96 cores fiber optic dome fusion box outdoor joint closure
Fiber Optic Splice Closures is used for protective connection of two or multiple optical cable and optic fiber distribution. It is one ofcommonlyused equipment of user access point.Used for the outdoor connection between optical distribution cable and optical inroom cable. Available for aerial,duct,direct buried application
Key Features:
• Up-down bisection, horizontal type
• 2 inlet/outlet
• 96 cores max capacity
• Slide-in-lock design, over 90 opening angle tray
• Elastic integrated seal ensure tightening fit
• Housing provide fire resistant, waterproof, and quakeproof for splices while handing
• Operating Temperature: -40 ~ +65 °C
Application :
1. Sutable for bunchy fibers
2. Aerial ,wall-mounting
3. FTTH optical fiber distribution
Product Specification:
| Product Name | Fiber optic splice closure |
| Color | black |
| Cores | bunchy 60cores,ribbon 96-144cores |
| Protection class | IP68 |
| Seals | Mechanical seal |
| Material | PC |
| Cable out of the tube configuration | Up to four out of the tube fiber optic cable |
| Ports diameter(mm) | 16~22mm |
| Fiber radius of curvature(mm) | 30 |
| Dielectric strength(kv) | 1.5 |
| Ambient temperature(°C) | -40~+60 |
| Atmospheric pressure(Kpa) | 70~1106 |
| Tensile strength(N) | >1000 |
| Anti-stress | >2000N/ 10cm2 Stress,Time 1min |
| Insulation Resistance | >2X10MΩ/500V(DC) |
| Compressive strength | 15KV(DC)/1min. No breakdown.No flashover |
| Housing dimensions(mm) | 425*163.5*87mm(L*W*H) |
| Splice Tray | Max 3 pcs, 24 cores each |
| Scope | Pole, buried, manholes, wall |
| Packing | 0.075m³/8pcs |
| Total weight | 1.46kg/1pcs |
Lead time
With more than 200 employees in my company,at least 10,000 connectors can be produced.
Research Department
With our separate research team,so we are albe to have products made according to your requirements.
Qulity assurance
Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.
The guarantee period is 5 years.So if there are problems with the goods,replacement will be available.
Accessories:
Product show:
