Detalhes do produto:
Condições de Pagamento e Envio:
|
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Outer jacket: | PVC/LSZH/OFNP |
|---|---|---|---|
| Fiber quality: | Simplex SX | Color: | Yelllow/Orange/Aqua/Customized |
| Cable diameter: | 0.9 /2.0 /3.0 mm | Package: | Carton, Wooden reel ,1km/roll |
| Destacar: | Aramid Optical Fiber Cables,LSZH Fiber Optic Cable,Multimode Simplex Fiber Cable |
||

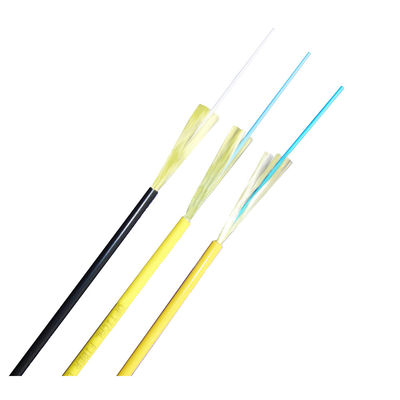

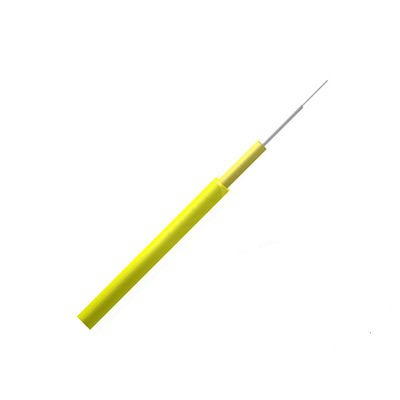

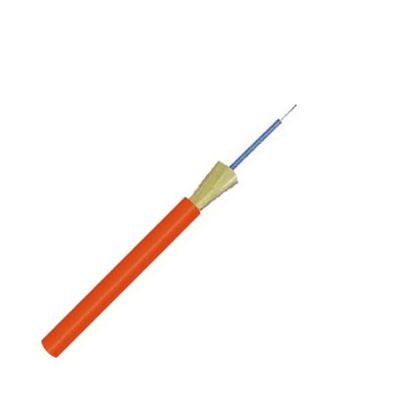

Multimode Simplex LSZH Jacket Aramid Optical Fiber Cables
GJFJV Yellow Single Mode Multimode Simplex Indoor Optical Fiber Cable LSZH Jacket,Aramid yarn
Discription:

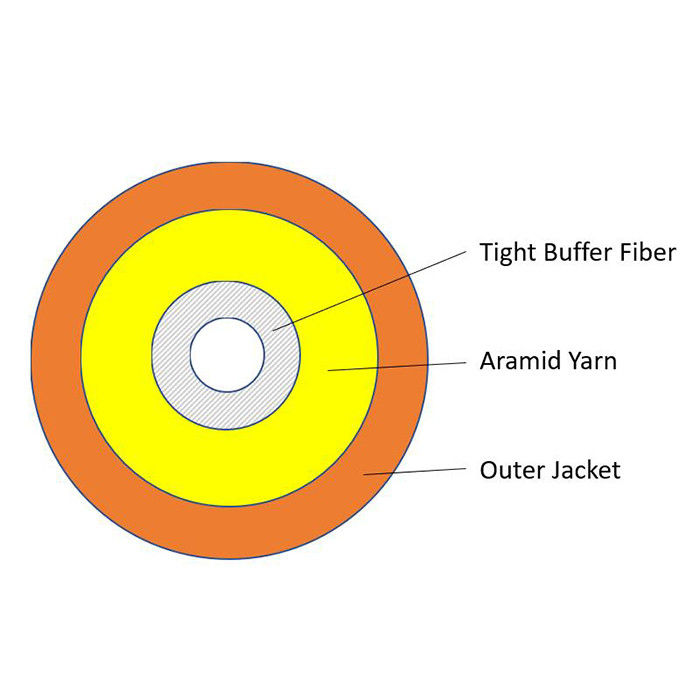

Simplex cable use single ∅900µm or ∅600µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength units, and the cable is completed with a PVC or LSZH (low smoke, zero halogen, flame-retardant) jacket.
Features:
Application:
Technical Parameters:
| Fiber Count | TBF Diameter (µm) | Cable Diameter (mm) | Cable Weight (kg/km) | Bending Radius (mm) | Tensile Strength (N) | Cruch Resistance (N/100mm) | ||||
| PVC Jacket | LSZH Jacket | Static | Dynamic | Long term | Short term | Long term | Short term | |||
| 1 | 600±50 | 1.6±0.2 | 2.4 | 2.6 | 30D | 50D | 60 | 100 | 100 | 500 |
| 1 | 900±50 | 1.8±0.2 | 3.5 | 4.5 | 30D | 50D | 60 | 100 | 100 | 500 |
| 1 | 900±50 | 2.8±0.2 | 6 | 7.5 | 30D | 50D | 60 | 100 | 100 | 500 |
Standards:
Comply with Standard YD/T1258, 2-2003,ICEA-596, GR-409, IEC60794-2-10/11, etc; and meet the requirements of UL approval for OFNR and OFNP.
Specification:
| 50/125µm | 62.5/125µm | G.652 | G.655 | ||
| Attenuation(+20°C) | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
| @1300nm | ≤1.5dB/km | ≤ 1.5dB/km | |||
| @1310nm | ≤0.5dB/km | ≤0.5dB/km | |||
| @1550nm | ≤0.4dB/km | ≤0.4dB/km | |||
| Bandwidth (Class A) | @850nm | ≥ 500MHz.km | ≥ 200MHz.km | ||
| @1300nm | ≥ 1000MHz.km | ≥ 600MHz.km | |||
| Numerical Aperture | 0.200 ±0.015NA | 0.275 ±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤ 1260nm | ≤ 1450nm | |||
| Attenuation at temperature cycling Δα(-20°C~+60°C) | @1300nm | ≤ 0.25dB/km | ≤ 0.25dB/km | ||
| @1550nm | ≤ 0.1dB/km | ≤ 0.15dB/km |
Transport/Storage/Operating Temperature: -20°C ~ +60°C
Installation Temperature: -5°C ~ +50°C
Order Information:
Ⅰ Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
Ⅱ Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
Ⅲ Outer Diamater of cable: 2.0mm, 3.0mm
Ⅳ Cable length: 2000M/Drum( customized, MOQ=2000M)
Ⅴ Cable Jacket: PVC,LSZH,OFNR,OFNP
Packing
Detail:
