1x8 Port Rack Mounted 19 Inch PLC Fiber Optic Splitter

1x8 Port Rack Mounted 19 Inch PLC Fiber Optic Splitter

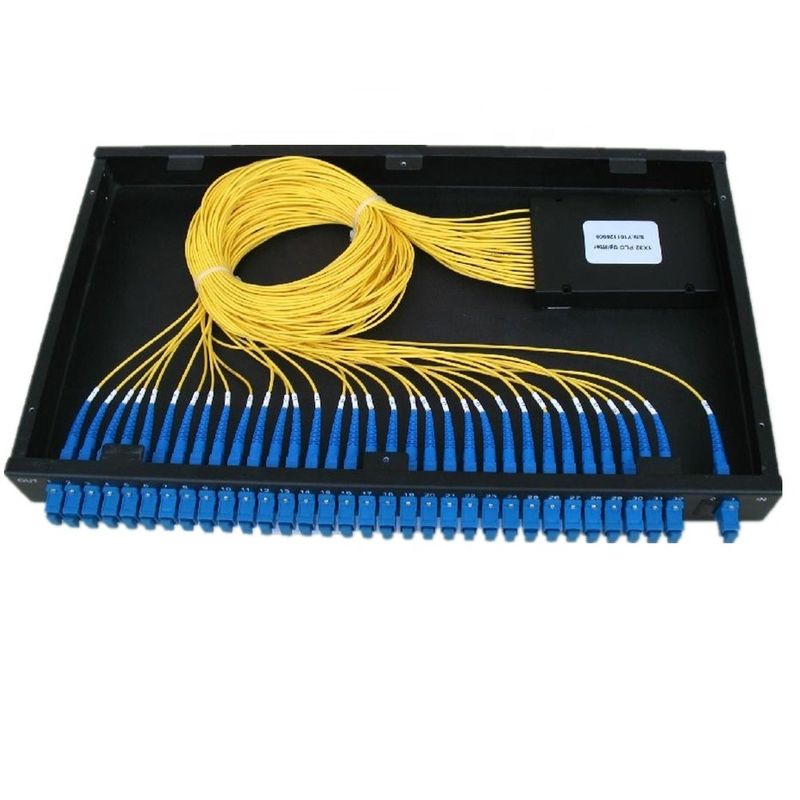

1*8 1*16 1*32 Port Rack mounted fiber optical terminal box 19 inch PLC Splitter Box

Description:

• The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.
• It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.
• This PLC splitter box meet the National Standard of YD/T925-1997.
• 1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.

Feature:

• Small package volume
• easy for management and suitable for various occasions.
• Single mode and multi mode available
• 1x2, 1x4 and 1x n customized splitters configuration available

Main technique index:

• Size(mm):(L×W×H) 430*250*1U
• Weight:2.4kg
• Fiber radius of curvature:≥40mm
• Added losses: no
• Length of fiber coiled:≥1.6m
• Maximum splitter capacity:SC maximum 1:32, FC maximum 2:16
• Scope of temperature:-40°C~+60°C
• Resistance to lateral pressure:500N
• shock resistance:750N

Package:

• Body: 1 set
• Installation ears:1 pair

Application:

1. Widely used in FTTH access network
2. Telecommunication networks
3. CATV networks, LAN Network
4. Data communications networks
5. Local area networks
6. Active device termination
