Detalhes do produto:
|
| Product name: | LC fixed Attenuator | Fiber Mode: | Single mode, Multimode |
|---|---|---|---|
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation range: | 0-30dB |
| Return loss: | PC≥45 dB; UPC≥50 dB ;APC ≥60 dB | Repeatability: | 1000 times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating temperature: | -40-80°C |
| Color: | Green | Connector: | LC APC |
| Destacar: | 15db Fiber Optic Attenuator,LC APC Attenuator,Singlemode Attenuator |
||
Fiber optic attenuators are used for reducing the power of the light in the fiber optic network. fiber optic attenuator or male to female which is also called a plug fiber optic attenuator.
Fiber optic attenuators can be designed to use with various kinds of fiber optic connectors. the attenuators can be female to female which is called bulkhead. fiber optic attenuator or male to female which is also called a plug fiber optic attenuator.
All attenuators are available in multiple dB increments and wavelengths Working wavelength 1310nm or 1550nm.
Features :
Application:
Specification:
| Attenuator Type | SC/UPC, SC/APC ,LC/UPC,LC/APC, FC/UPC, FC/APC ,ST |
| Reflection Attenuator (dB) | UPC>55dB ; APC> 65dB |
| Operating Temperature | -40~80°C |
| Storage Temperature | -40~85°C |
| Max Optical Input Powerhs (nm)hs (nm) | 200mW |
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nmc

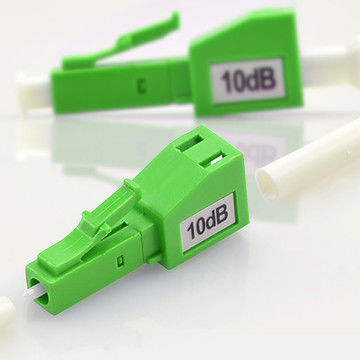

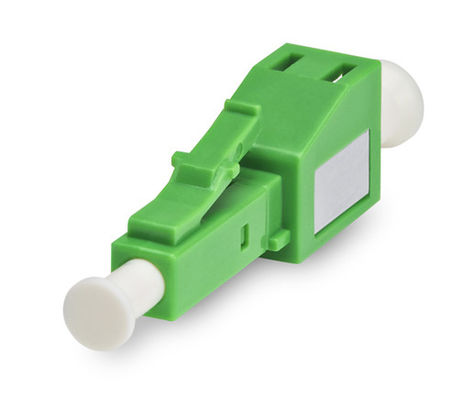

Product picture
