Detalhes do produto:
Condições de Pagamento e Envio:
|
| Certificação: | RoHS,ISO9001 | Connector: | MPO MTP |
|---|---|---|---|
| Fiber Count:: | 8/12 Fibers | Application: | FTTH FTTB FTTX Network,cabling system |
| fiber type: | OM4 OM3 | Insertion loss: | IL<0.35db |
| Destacar: | OM3 OM4 Pigtail,MPO OM3 Pigtail,8 Core OM3 Pigtail |
||

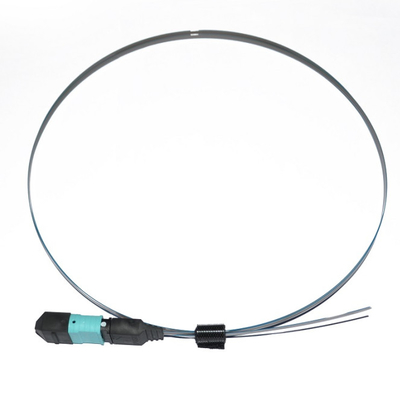

MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.

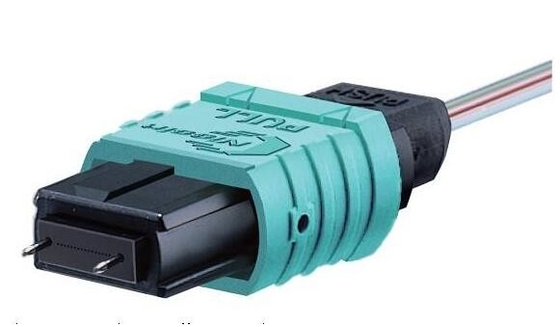

Connector Performance Specifications
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color |
Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Fiber Cable Perfomance Specifications
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores |
| Cable Diameter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -40 to 75℃ |
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Features and Benefits
Ulitize MPO/MTP connectors
Rapid deployment
Factory terminated
100% test
High density cable
Optimized performance
Compliant to directive 200/95/EC(RoHS)
MPO connector complies with IEC-61754-7
