| Product name: | Fiber patch cord | Cable color: | Black or customized |
|---|---|---|---|
| length: | 1m,2m,3m 100m or customized | Cable Dimension: | 0.9mm, 2.0mm,3.0mm |
| Connector: | SC/APC | Model: | Single Model |
| wavelength:: | 1310nm or 1550nm | Cable type: | G652D, G657A1,G657A,G657B3 |
| Destacar: | FTTH SM SX optical fiber patch cord,G657A one core fiber patch cord,100m G657A fiber patch cord |
||
100m G657A One Core FTTH SM SX Optical Fiber Patch Cord
FTTH Aerial Self-supporting Drop cable, FRP Strength Member, LSZH Jacket
Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).
The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket.
Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.
Characteristics
Application
Optical performance:
| Test Item | Test Condition | Value(dB) | ||
| UPC | APC | |||
| Optical Performance | Insertion Loss | 1310nm LED light source | <0.3 | <0.3 |
| Return Loss | 1310nm LED light source | >50 | >60 | |
| Environmental Performance (Max. Insertion Loss change) | High temperature | +85°C168 hours | <0.2 | |
| Temperature Cycle | -40-+75°C, 21 Cycles 168 hours | <0.2 | ||
| Humidity Aging | +75°C, 95%R.H,168 hours | <0.2 | ||
| Humidity/Condensation Cycling | -10°C-+65°C, 90%~100%RH, 14 cycles 168 hours | <0.2 | ||
| Mechanical Performance ( Max. Insertion Loss change) | Vibration | 10-55Hz, 1.5mm(p-p) | <0.2 | |
| Flex | 0.9kg,-90o~+90o repeat for 100 cycles | <0.2 | ||
| Torsion | 1.35kg,90o~+90o ,10times | <0.2 | ||
| Withstand tensile | 90N,10min | <0.2 | ||
| Drop | H=1.5M,Total of 8 drops | <0.2 | ||
| Exchangeability | Randomly | <0.2 | ||
| Durability | 500 times | <0.2 | ||
Quality Guarantee
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

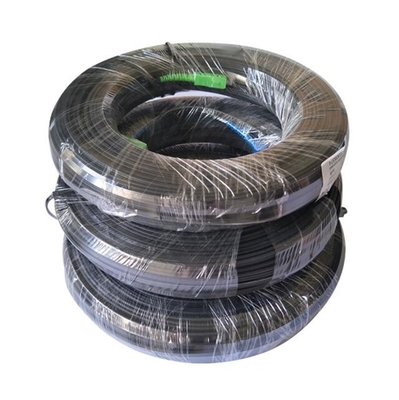

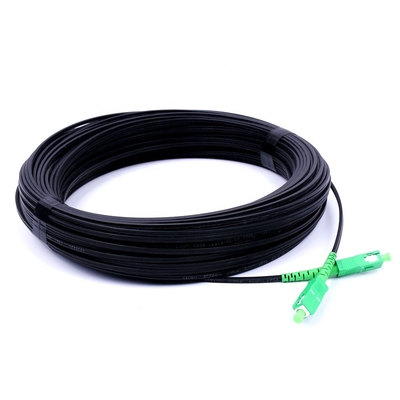

Product picture
