Detalhes do produto:
Condições de Pagamento e Envio:
|
| Jacket Materials: | LSZH | Cable type: | Single Mode(G652D) |
|---|---|---|---|
| Cable color: | Yellow | Structure: | IL≤0.2dB,RL≥50dB |
| Cable diameter: | 0.9/2.0/3.0mm | Fiber qty: | Simplex |
| Destacar: | SC UPC To FC UPC Fiber Optic Patch Cords,Simplex LSZH Fiber Patch Cords,Simplex LSZH Optic Patch Cords |
||

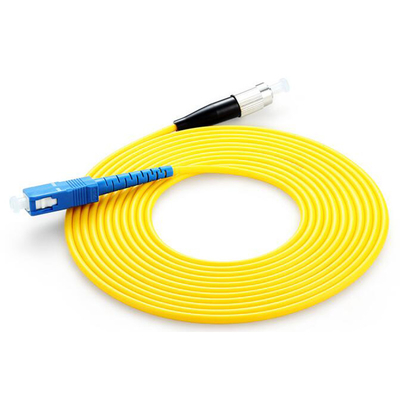

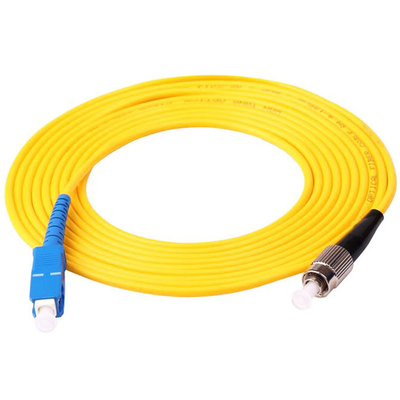

SC UPC To FC UPC Simplex LSZH Fiber Optic Patch Cords
Description:
A patch cord is a fiber optic cable used to attach one device to another for signal routing.
FC stands for Fixed Connection. It is fixed by way of a threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
SC stands for Subscriber Connector- a general purpose push/pull style connector. It is a square, snap-in connector latches with a simple push-pull motion and is keyed.
Features:
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
0.9mm,2mm,3mm can be chose
Cable jackt and Fiber can be chose.
Application:
Testing equipment
FTTX+LAN, Optical fiber CATV
Optical communication system
Telecommunication
Specification:
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Order Information:
SC/ APC–SC/ APC-SM- SX-Φ3.0–2M
① ② ③ ④ ⑤
① Connector type: SC/APC,SC/UPC,SC/PC(multimode)
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (G652 ,G655,G657…); Multimode (OM1, OM2, OM3, OM4…)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: customized
⑦ Cable type: PVC, LSZH, OFNR, OFNP

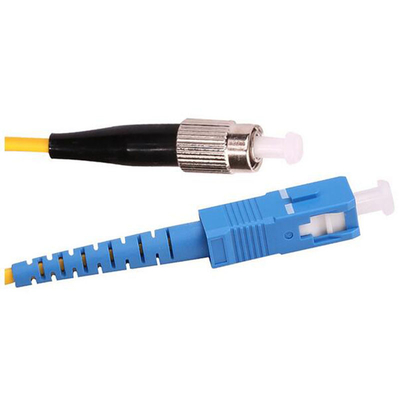

Picture of connector:
