Detalhes do produto:
Condições de Pagamento e Envio:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|

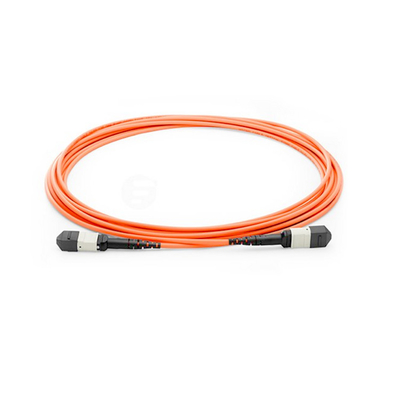

| Connector type: | Female /Male | Cable color: | Purple / Violet / Orange |
| Fiber qty: | 8 /12 /24 core | Cable Material: | LSZH / OFNP / PVC |
| Cable shape: | Round / Ribbon | Fiber type: | OM1 / OM2 / OM4 |
| Destacar: | MM MPO Trunk Cable,MM MTP Trunk Cable,OM1 OM2 OM4 Trunk Cable |
||

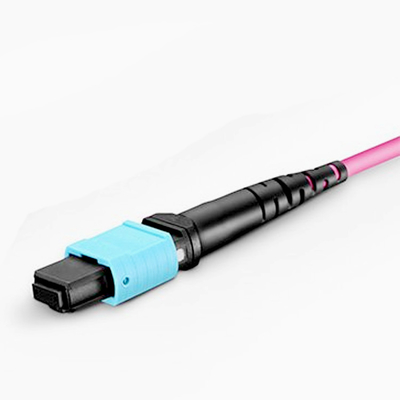

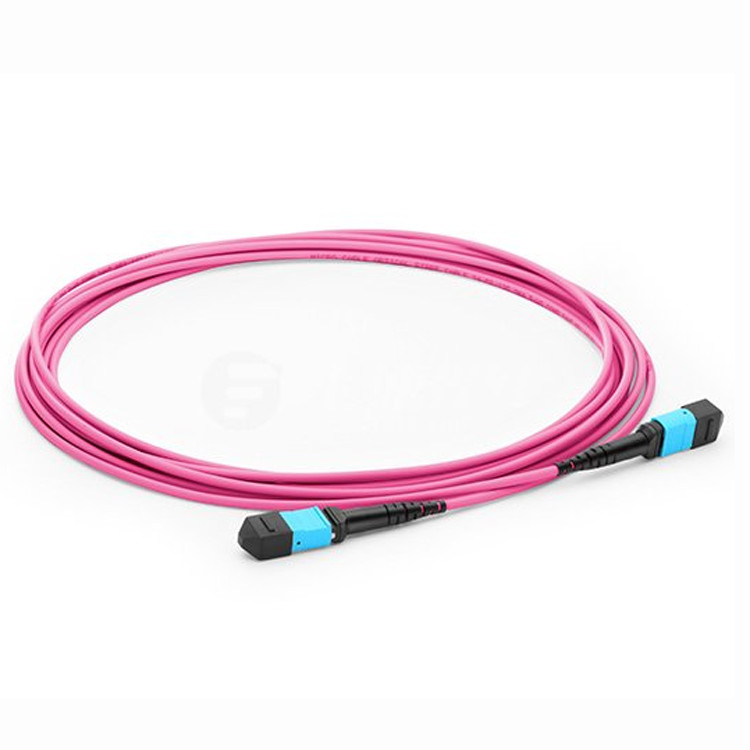

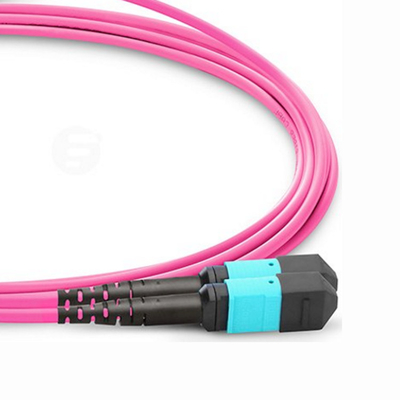

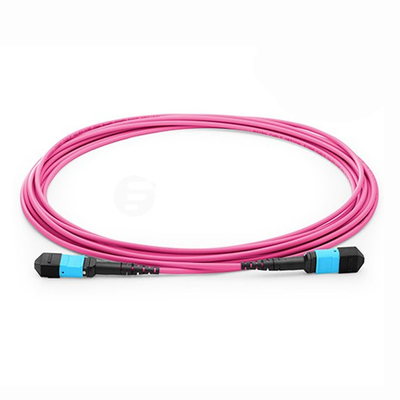

OM1 OM2 OM4 Mutilmode MM MPO MTP Trunk Cable
12core MTP to MTP Truck Cable Mutilmode MM MPO Patch Cord Purple Violet Cable
MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.
Features:
1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
MTP / MPO Specification:
| Type | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
Production Equipment :
