Detalhes do produto:
Condições de Pagamento e Envio:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female / Male | Cable color: | Aqua / Wathet blue |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | G652D / G657A / G657B |
| LC Connector Type: | Duplex / Simplex / Uniboot | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| Destacar: | Mpo Lc Breakout Cable,24 Core Mpo Breakout Cable,G652D Mpo Cable |
||

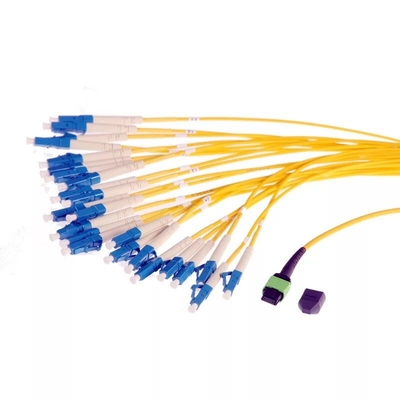

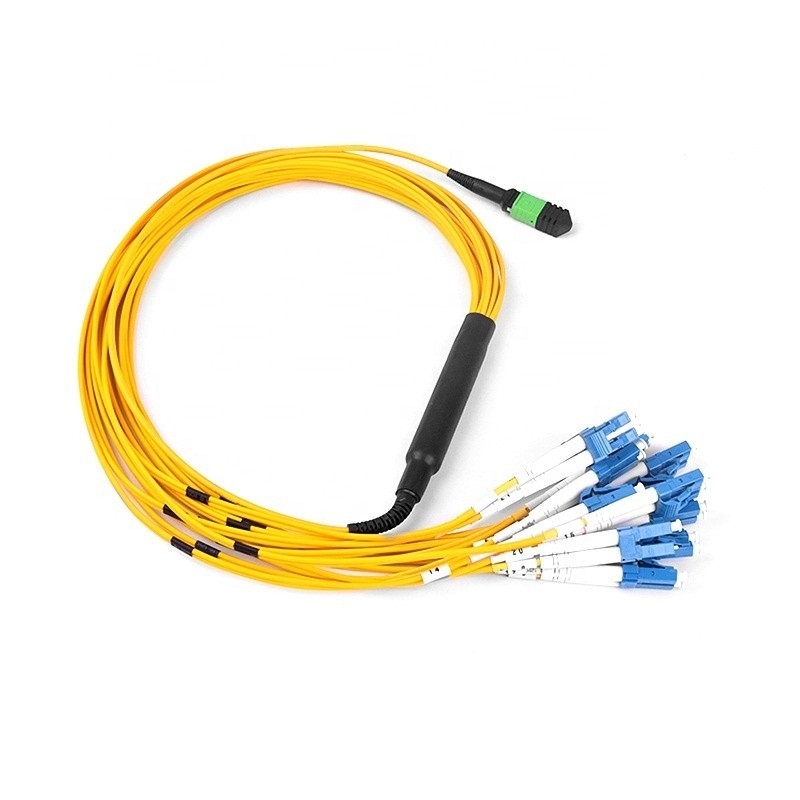

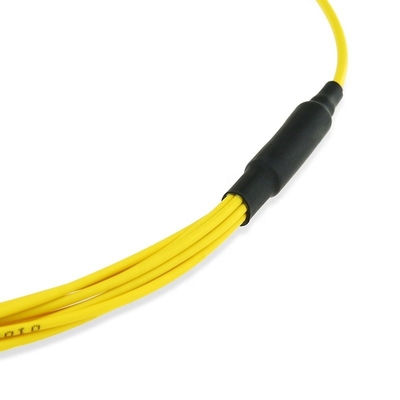

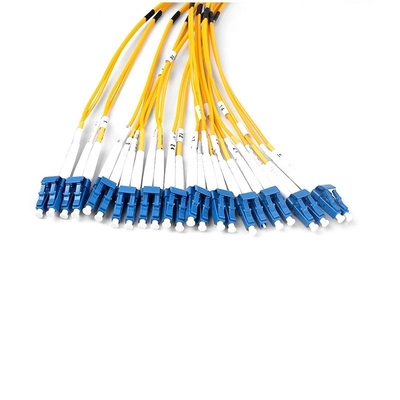

G652D Singlemode 24 Core Mpo Lc Breakout Cable
Singlemode 24core MPO-LC Duplex Simplex Uniboot Breakout Patch Cord G652D
MTP/MPO fiber optic patch cords are with MTP/MPO fiber optic connectors. The MTP/MPO fiber optic patch cords are used in Ribbon type multi fiber assemblies. unlike simplex or duplex, there are several fiberglass connections in one MTP/MPO fiber optic patch cord ,for example,4 fiber,8 fiber,12 fiber ,etc. typical MTP/MPO fiber optic patch cord assemblies like MTP/MPO to 8 LC ,MTP/MPO to 12 MT-RJ ,etc. MTP/MPO fiber optic patch cords are also available by single mode and multimode, PC and APC polish
Features:
(1) Ceramic Ferrule;
(2) High return loss;
(3) Low insertion loss;
(4) Good repeatability and and exchangeability;
(5) Excellent Polished and 100% tested;
(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Application:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Specification:
Superior qualified standard PC, APC, UPC, and SPC polishing
100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC)
100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC)
φ0.9mm, φ2.0mm, φ3.0mm cable optional
Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available
FC, SC, LC, MU, ST, MT-RJ, E2000, MPO, etc. connector
Simplex and duplex connector available
|
Two other clearly visible features are the noses and guide grooves (keys) on the top side. (Note: Female connector need to connect with male connector type.) |
