Detalhes do produto:
Condições de Pagamento e Envio:
|
| Certificação: | RoHS,ISO9001 | Connector: | MPO MTP |
|---|---|---|---|
| Fiber Count:: | 8/12 Fibers | fiber type: | SM |
| Return loss: | >60dB | Model Name:: | MTP MPO 12C SM Pigtail |
| Insertion loss: | SM≤0.15dB | Band: | Senko |
| Destacar: | Senko SM Pigtail,MPO MTP SM Pigtail,Fiber Optic SM Pigtail |
||

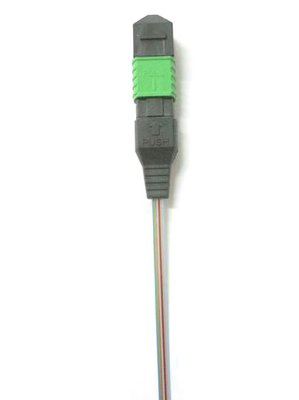

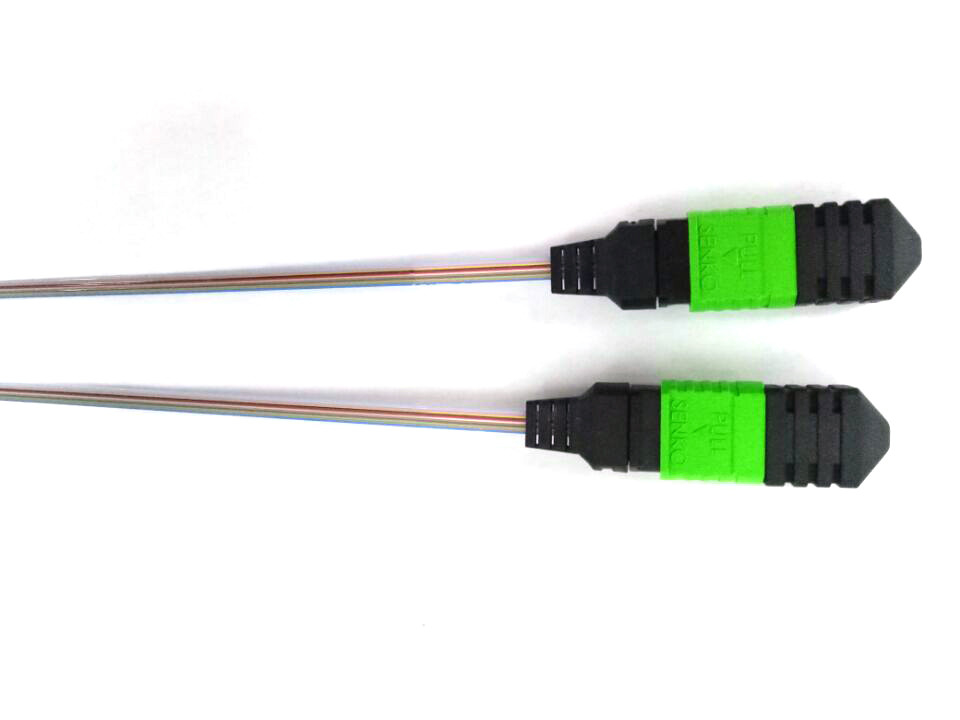

CY COM/ MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
Connector Performance Specifications
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color |
Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Fiber Cable Perfomance Specifications
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores |
| Cable Diameter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -40 to 75℃ |
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Features and Benefits
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
